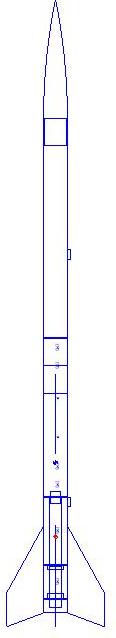

Astrobee D Rocksim Design File

Comments: Design file created by Brittain Fraley.

Designer: Original RockSim file from www.RocketReviews.com

Visit www.aerotech-rocketry.com to download Aerotech_kits_aerotech_astrobee_d.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

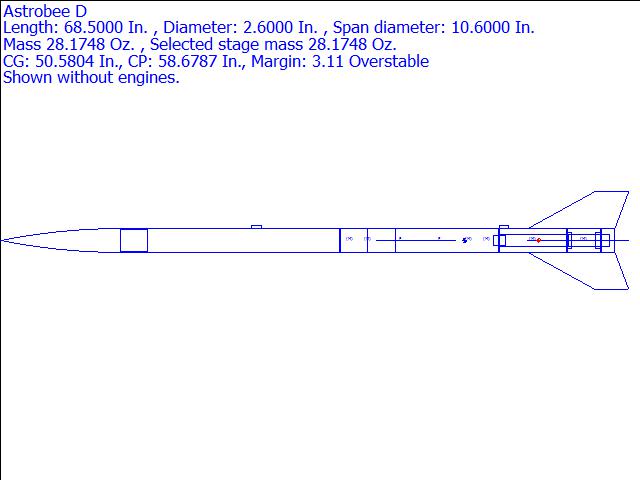

CG: 50.5804 inches from front
CP: 58.6787 inches from front
Margin: 3.11 Overstable

Parts Breakdown

• Aerotech Astrobee-D Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 27.00 in]
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Launch Lug
• Custom Rip stop nylon Parachute (22.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 27.00 in]
• Custom Ring
• Custom Ring
• Custom Ring
• Custom Launch Lug
• Custom Mass Object
• Custom Mass Object
• Custom Rip stop nylon Parachute (30.00 in)
• Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Custom Ring
• Custom Ring
• Custom Mass Object
• Custom Mass Object
• Custom Ring
• Custom Ring
