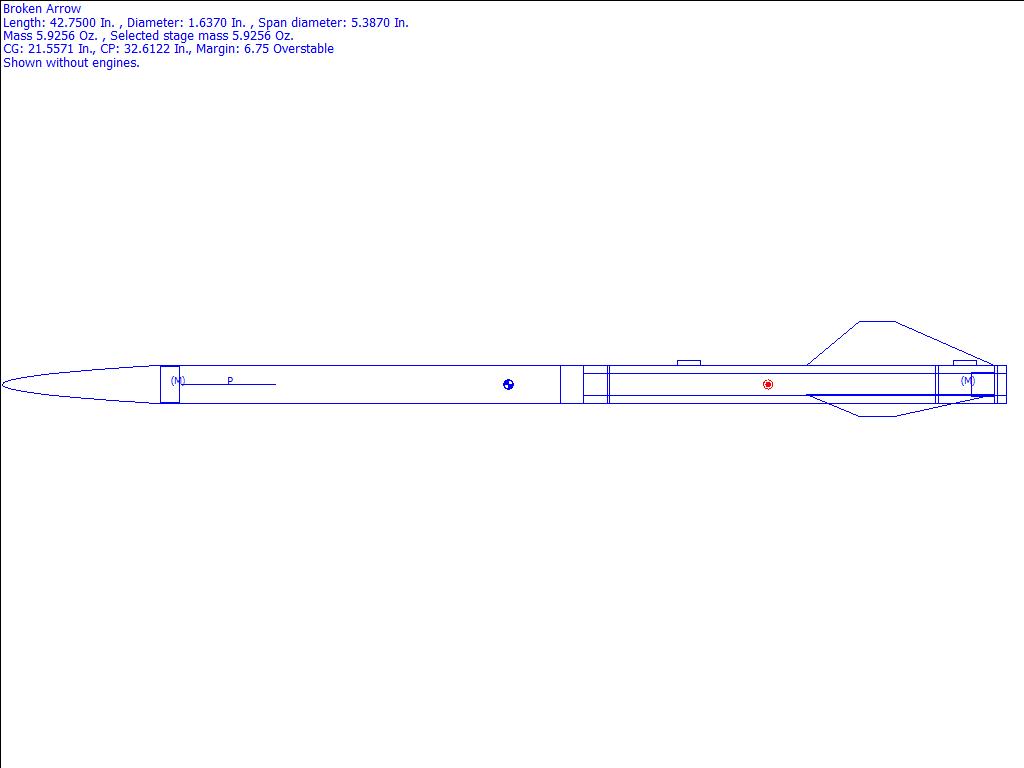

Broken Arrow Rocksim Design File

• Manufacturer: Scratch

Comments: Great flights on only an E15-7

Designer: Dave Rose

Download scratch_brknarow.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Broken Arrow {Scratch}

CG: 21.5571 inches from front
CP: 32.6122 inches from front
Margin: 6.75 Overstable

Parts Breakdown

• Anubis Parabolic Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Ring
• Estes Rip stop nylon Parachute (24.00 in)
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Broken Arrow Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Estes Engine hook Standard size Mass Object
• Custom Ring
• Estes ESTES 2328 Launch Lug
• Estes ESTES 2328 Launch Lug
• Custom Ring
• Custom Ring
• Custom Ring

What You Can Do

• Submit a File Related to this Rocksim Design File
• Submit a Rocksim Design File to RocketReviews.com
