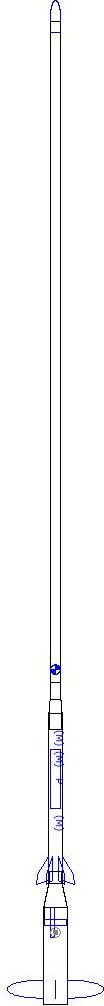

Porpoise with a Purpose Rocksim Design File

Comments: EMRR Virtual Rocket Sim Competition, Sept. 2005

Designer: Clive Davis

Download virtual_contest_davis_porpoise_purpose.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 27.6088 inches from front
CP: 38.4563 inches from front
Margin: 24.38 Overstable

Parts Breakdown

• Needle Rocket Elliptical Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 28.00 in]
• Apogee Components Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Porpoise with a Purpose Freeform Freeform Fin Set
• Semroc Mylar Parachute (14.63 in)
• Semroc SE-10 Screw Eye Mass Object
• Estes 24 inch 1/8 In Elastic shock cord Mass Object
• Quest ? 1/16 kevlar thread Mass Object
• Balsa Machining Service Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Apogee 13031 Ring
• Porpoise with a Purpose Elliptic Elliptical Fin Set
• BalsaMachining.com LL18-125 Launch Lug
