SA-2B Guidline Rocksim Design File

• Manufacturer: Scratch

Comments: Semi Scale

Designer: LOC

Download scratch_sa_2b.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

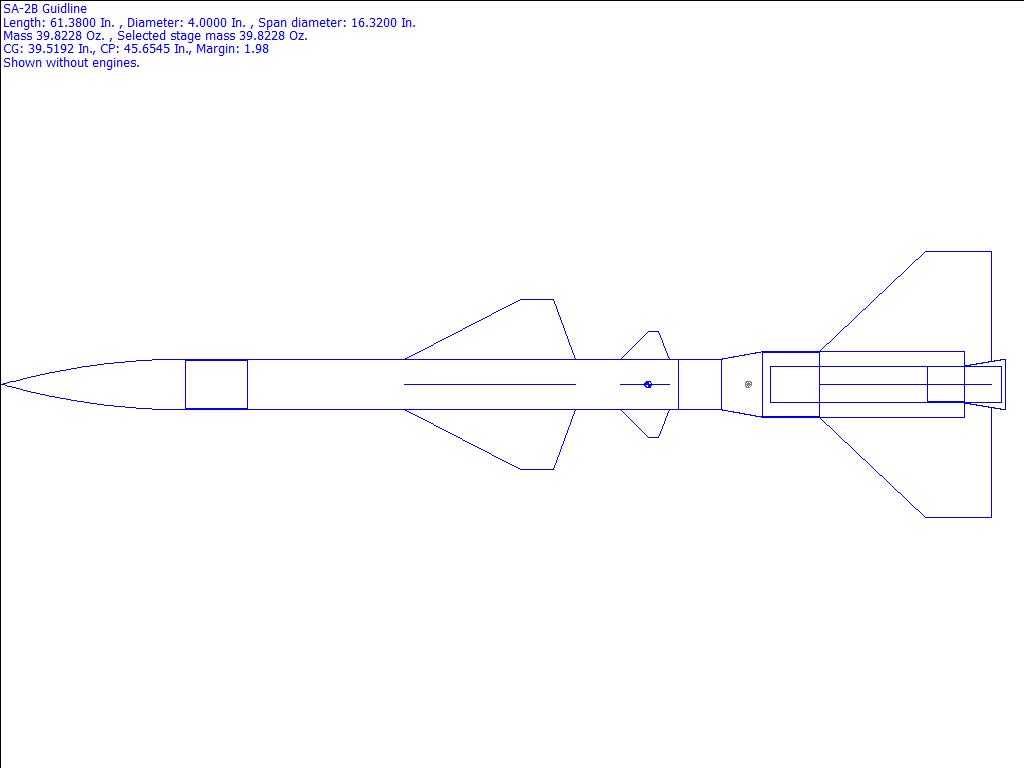

Kit Name: Scratch - SA-2B Guidline {Scratch}

CG: 39.5192 inches from front
CP: 45.6545 inches from front
Margin: 1.98

Parts Breakdown

• BSD Canadian Sprint 38mm Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 32.76 in]
• SA-2B Guidline Trapezoid Fin Set Trapezoid Fin Set
• SA-2B Guidline Trapezoid Fin Set Trapezoid Fin Set
• LOC/Precision Conical Transition
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.36 in]
• SA-2B Guidline Trapezoid Fin Set Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.12 in]
• Custom Conical Transition
