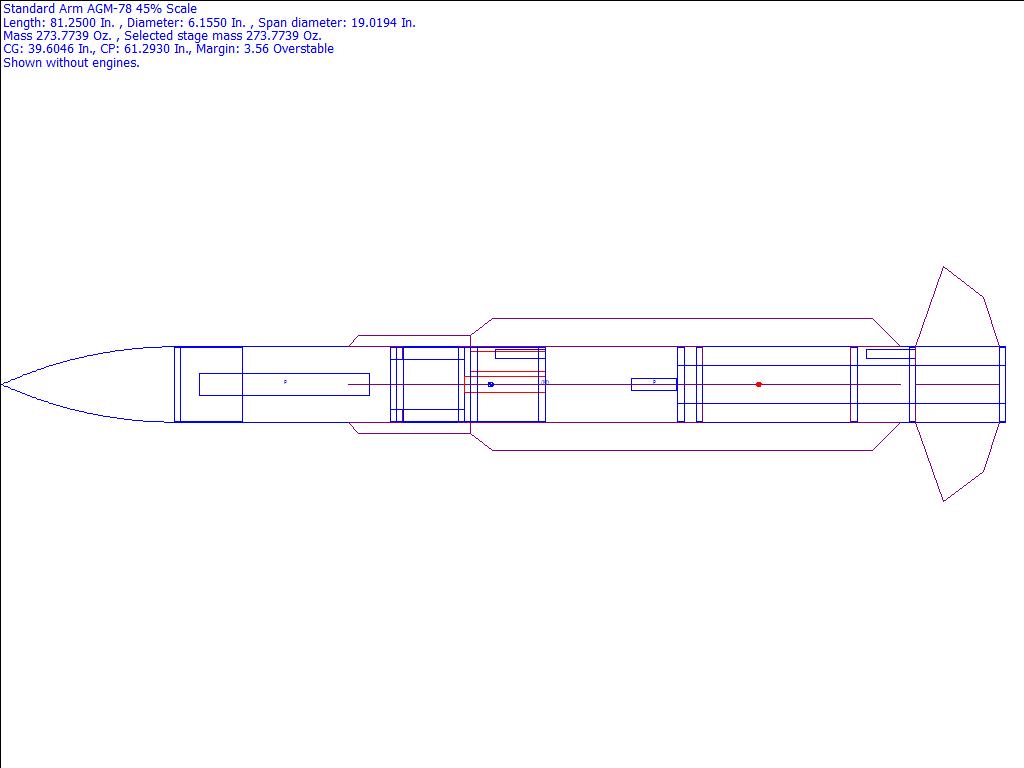

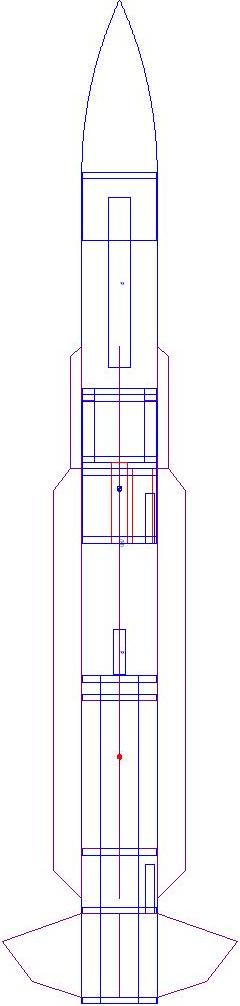

Standard ARM AGM-78 Rocksim Design File

• Manufacturer: Scratch

Designer: Carl Tulanko

Download scratch_agm_78_45_percent_75mm_motor_mount.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Standard ARM AGM-78 {Scratch}

CG: 39.6046 inches from front
CP: 61.2930 inches from front
Margin: 3.56 Overstable

Parts Breakdown

• Standard ARM AGM-78 Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 24.00 in]
• Public Missiles CCR-6.0-3.9 Ring
• Custom CCR-6-1.1 Ring
• Public Missiles Ltd. CT-6.00 Ring
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (82.69 in)
• Public Missiles CBP-6.0 Ring
• Public Missiles CR-6.0-3.9 Ring
• Public Missiles CCR-6.0-3.9 Ring
• Standard ARM AGM-78 Freeform Fin Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 43.25 in]
• Custom Mass Object
• Public Missiles CR-6.0-3.0 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 26.50 in]
• Standard ARM AGM-78 Freeform Fin Freeform Fin Set
• Public Missiles CR-6.0-3.0 Ring
• Public Missiles LL-0.75 Launch Lug
• Standard ARM AGM-78 Freeform Fin Freeform Fin Set
• Public Missiles CR-6.0-3.0 Ring
• Public Missiles CR-6.0-3.0 Ring
• Public Missiles CR-6.0-3.0 Ring
• Public Missiles CBP-6.0 Ring
• Public Missiles LL-0.75 Launch Lug
• Public Missiles CBP-6.0 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 6.50 in]
• b2 Rocketry 1.9 oz. Ripstop Nylon (SkyAngle) Parachute (21.82 in)
