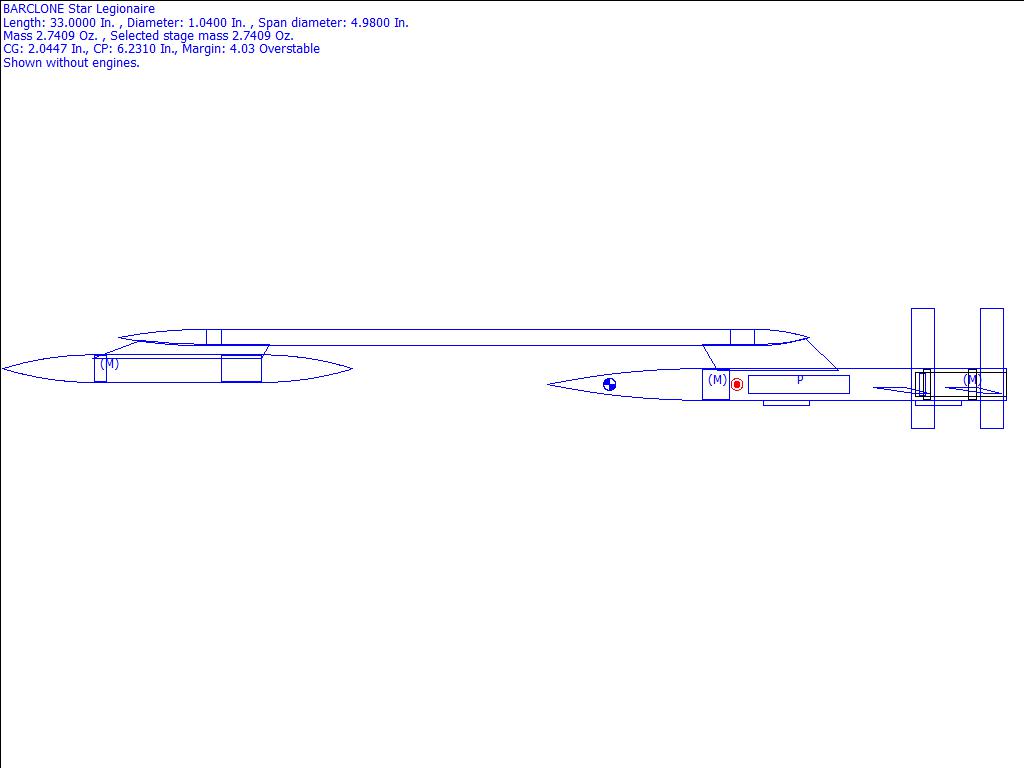

Star Legionaire Rocksim Design File

• Manufacturer: Scratch

Comments: A real odd-ball of a design. Makes a good test for the new RockSIM.

Designer: C. P. McGraw -- BARCLONE Rocketry

Download scratch_star_legionaire.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Scratch - Star Legionaire {Scratch}

Parts Breakdown

• Star Legionaire Ogive Nose Cone
• Semroc SE-10 Screw Eye Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TB-7 Ring
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• External Pod
• Star Legionaire Freeform Fin Set Freeform Fin Set
• External Pod
• Star Legionaire Freeform Fin Set Freeform Fin Set
• External Pod
• Star Legionaire Freeform Fin Set Freeform Fin Set
• External Pod
• Star Legionaire Freeform Fin Set Freeform Fin Set
• External Pod
• RingTail
• External Pod
• RingTail
• External Pod
• Star Legionaire Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Star Legionaire Freeform Fin Set Freeform Fin Set
• Star Legionaire Freeform Fin Set Freeform Fin Set
• Semroc Mass Object
• Custom Ogive Transition
• External Pod
• Star Legionaire Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Ogive Transition
• External Pod
• Star Legionaire Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Custom Ogive Transition
• Star Legionaire Freeform Fin Set Freeform Fin Set
• Star Legionaire Freeform Fin Set Freeform Fin Set
• Semroc LL-115 Launch Lug
• Semroc LL-115 Launch Lug
• Semroc Polyethylene LDPE Parachute (20.00 in)
