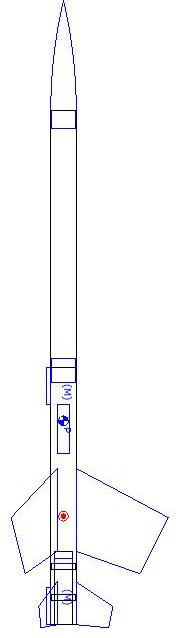

2X Estes SARK Rocksim Design File

Visit Ye Olde Rocket Forum to download 2X_Estes_SARK.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

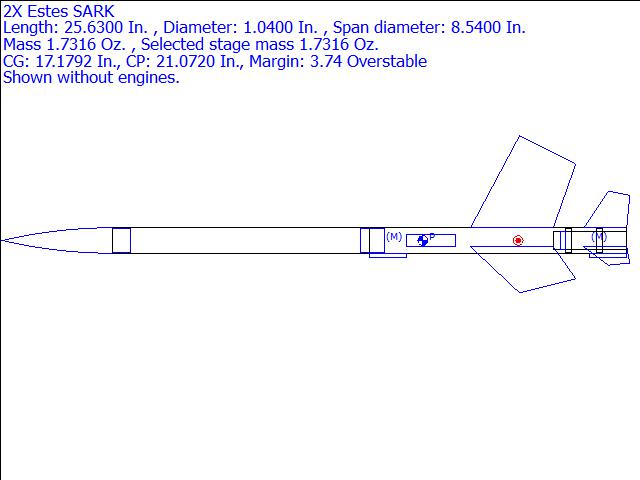

CG: 17.1792 inches from front
CP: 21.0720 inches from front
Margin: 3.74 Overstable

Parts Breakdown

• 1.91x_Screamer.rkt Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
• SEMROC BTC-10 Ring
• Semroc SE-12 Screw Eye-Large Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.50 in]
• Semroc Polyethylene LDPE Parachute (12.00 in)
• SubAssembly
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Semroc TB-7 Ring
• Semroc EH-28 Engine Hook Standard Mass Object
• Freeform Fin Set
• 1.91x_Screamer.rkt Freeform Fin Freeform Fin Set
• Semroc LL-115 Launch Lug
• Semroc LL-115 Launch Lug
