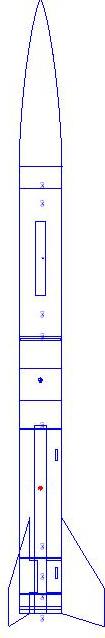

Aerotech G-Force Rocksim Design File

Comments: Custom Nose Cone may not be exact replica of ACME PNC-39 included in kit. Design file created by Andrew Grippo.

Designer: Ed LaCroix - Kit modified to accept up to AT 29/360 casing using PML 29mm PMR system. File from www.RocketReviews.com

Visit www.aerotech-rocketry.com to download aerotech_cheetah.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

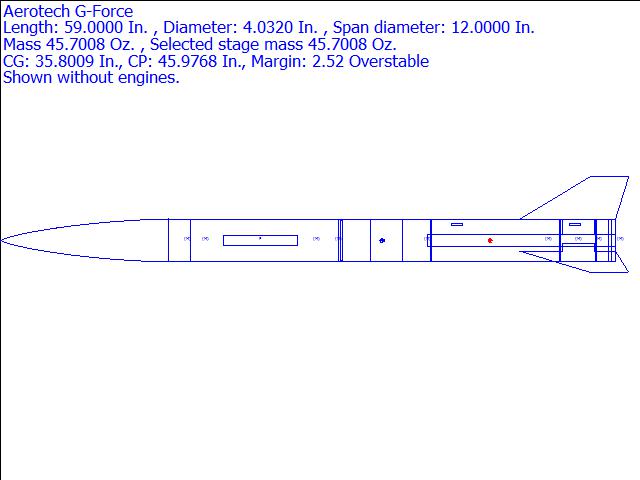

CG: 35.8009 inches from front
CP: 45.9768 inches from front
Margin: 2.52 Overstable

Parts Breakdown

• Aerotech G-Force Haack Nose Cone
• Custom Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 19.00 in]
• Custom Mass Object
• Custom Mass Object
• Public Missiles Rip stop nylon Parachute (42.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 23.00 in]
• LOC Precision TC-3.90 Ring
• LOC Precision LOC CR-3.9-1.14 Ring
• Aerotech G-Force Trapezoid Fin S Trapezoid Fin Set
• Public Missiles LL-0.25 Launch Lug
• LOC Precision LOC CR-3.9-1.14 Ring
• LOC Precision LOC CR-3.9-1.14 Ring
• LOC Precision LOC CR-3.9-1.14 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.69 in]
• Custom Mass Object
• Custom Mass Object
• Custom Mass Object
• Custom Mass Object
• Public Missiles LL-0.25 Launch Lug
• Custom Mass Object
• LOC Precision LOC BP-3.90 Ring
• Custom Mass Object
