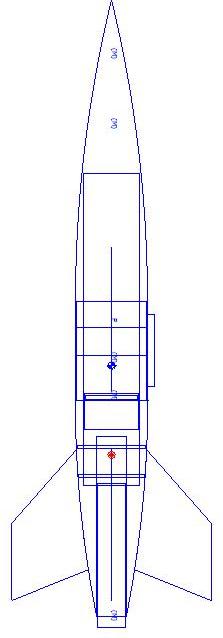

Public Missiles Little Lunar Express Rocksim Design File

Comments: RockSim doesn't allow 2 fins, so took rudders and wings, averaged chords and span between the rudders and wings, and created these 4 fins which are the average of the two.

Designer: Andrew D. Waddell

Visit www.publicmissiles.com to download Io_38mmRedlineEllisMAC-8.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

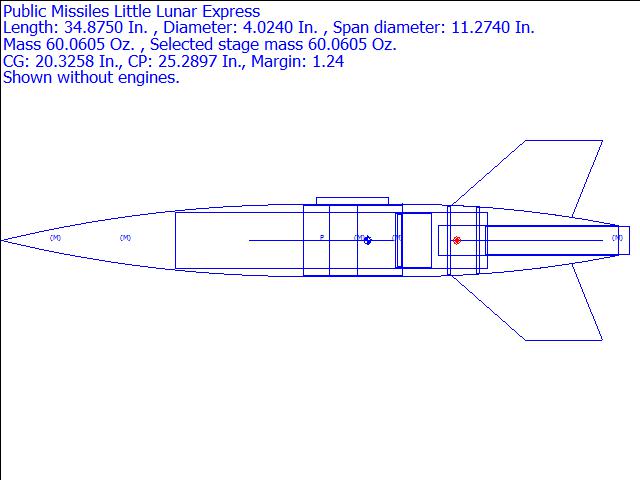

CG: 20.3258 inches from front
CP: 25.2897 inches from front
Margin: 1.24

Parts Breakdown

• 1-2PatriotRedlineEllis.rkt Ogive Nose Cone
• Custom Mass Object
• Public Missiles LilLunar nose Bplate w/hdwe Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.50 in]
• Public Missiles PML LL-38 Launch Lug
• Public Missiles PML LL-38 Launch Lug
• Custom Mass Object
• Public Missiles Ogive Transition
• Intruder_38mmMAC-8.rkt Trapezoid Trapezoid Fin Set
• Custom Mass Object
• Public Missiles PML CR-10 Ring
• Public Missiles PML CR-10 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 17.37 in]
• Public Missiles Rip stop nylon Parachute (48.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.00 in]
• Public Missiles PML CBP-05 Ring
• Public Missiles PML DR-10 D ring Mass Object
