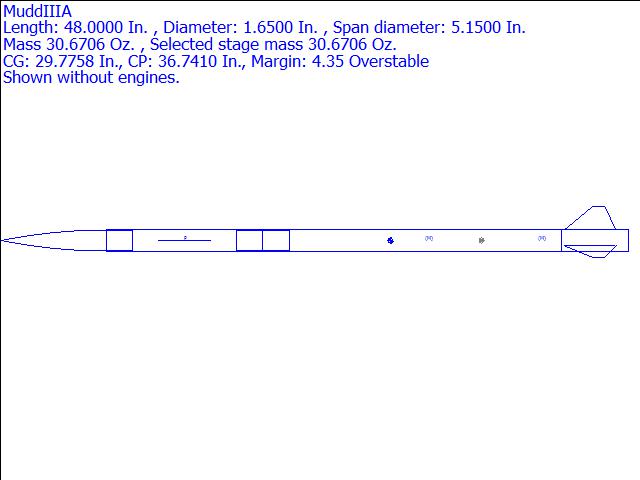

MuddIIIA Rocksim Design File

Visit www.eng.hmc.edu to download MuddIIIA.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 29.7758 inches from front
CP: 36.7410 inches from front
Margin: 4.35 Overstable

Parts Breakdown

• Billy Bob Joe Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 12.00 in]
• Public Missiles Rip stop nylon Parachute (24.00 in)
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 28.00 in]
• Public Missiles Ltd. CT-1.52 Ring
• DRegionTomahawk_38mmMAC-8.rkt Tr Trapezoid Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 5.20 in]
• Public Missiles PS-3.9 Fits PT-3.9 or QT-3.9 Mass Object
• Public Missiles PS-2.1 Fits PT-2.1 or QT-2.1 Mass Object
