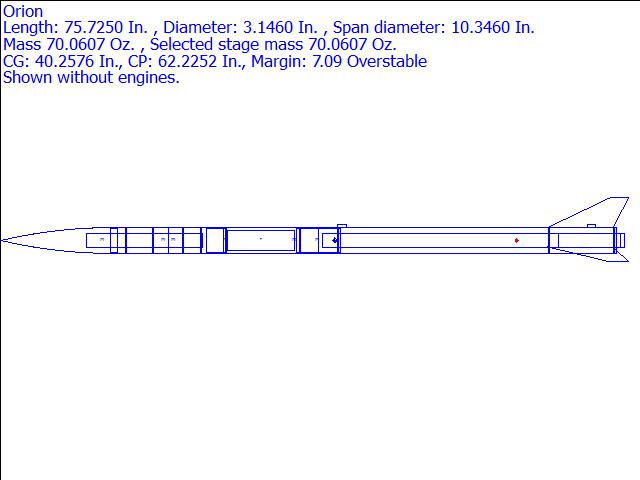

Orion Rocksim Design File

Comments: PML Hybrid ERM

Designer: ADWaddell

Visit www.publicmissiles.com to download Orion 29mm ADPTR.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 40.2576 inches from front
CP: 62.2252 inches from front
Margin: 7.09 Overstable

Parts Breakdown

• LunarExpress_54mmRedlineEllis.rk Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 10.00 in]
• Public Missiles CPR3K-TAC CPR3000 aluminum threaded coupler Mass Object
• Public Missiles CR-3.0-1.5 Ring
• Public Missiles CR-3.0-1.5 Ring
• Public Missiles Co-Pilot Altimeter; PML Co-Pilot Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 18.00 in]
• Public Missiles Rip stop nylon Parachute (48.00 in)
• Custom Mass Object
• Public Missiles DRING-1.0 1 inch Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]
• Public Missiles CBP-3.0 Ring
• Public Missiles DRING-1.0 1 inch Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 4.00 in]
• Public Missiles CPR3K-SLEEV CPR3000 aluminum threaded sleeve Mass Object
• Public Missiles CR-3.0-1.5 Ring
• Public Missiles CR-3.0-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Public Missiles Ltd. CT-3.00 Ring
• Public Missiles CBP-3.0 Ring
• Public Missiles LL-0.38 Launch Lug
• Public Missiles LL-0.38 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]
• Public Missiles CR-3.0-1.5 Ring
• Public Missiles CR-3.0-1.5 Ring
• Public Missiles CR-3.0-1.5 Ring
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 8.00 in]
• Freeform Fin Set
