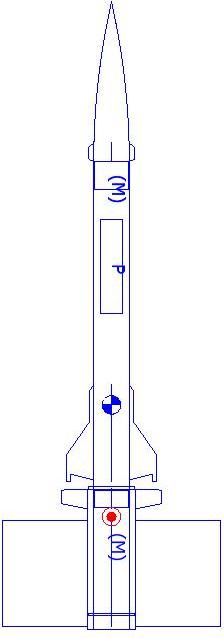

Semroc Sam-3 Rocksim Design File

Visit www.semroc.com to download Semroc-SAM-3.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

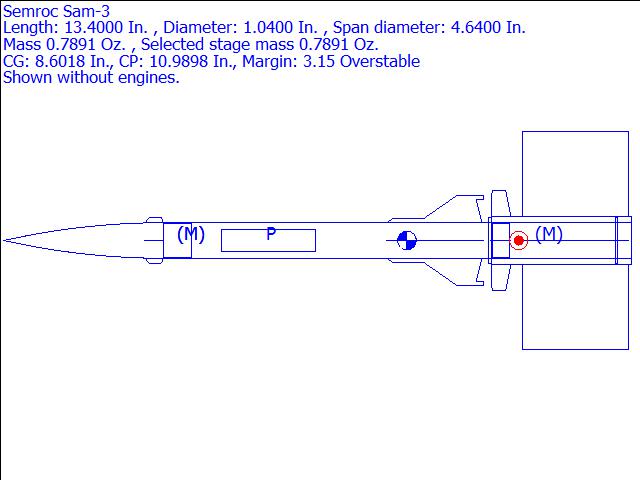

CG: 8.6018 inches from front
CP: 10.9898 inches from front
Margin: 3.15 Overstable

Parts Breakdown

• Semroc-SAM-3.rkt Ogive Nose Cone
• Semroc SE-12 Screw Eye Mass Object
• Semroc WW-7A Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 7.00 in]
• Semroc Polyethylene LDPE Parachute (12.00 in)
• Semroc-SAM-3.rkt Freeform Fin Se Freeform Fin Set
• Freeform Fin Set
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
• Semroc TR-7 Ring
• Semroc CR-710 Ring
• Semroc CR-710 Ring
• Freeform Fin Set
• Freeform Fin Set
• Semroc EH-28 Engine Hook Standard Mass Object
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.00 in]
