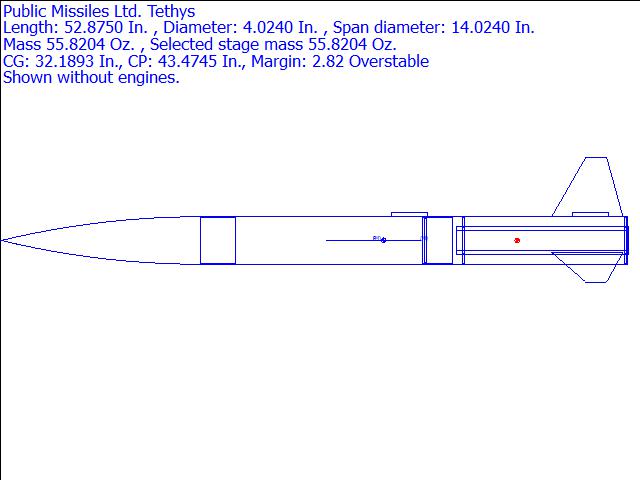

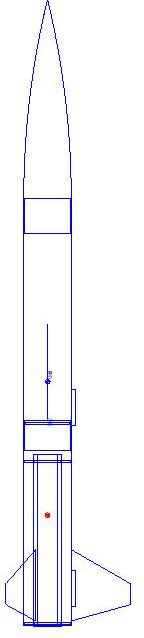

Public Missiles Ltd. Tethys Rocksim Design File

Designer: Andrew D. Waddell

Visit www.publicmissiles.com to download Tethys_38mmMAC-8.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

CG: 32.1893 inches from front
CP: 43.4745 inches from front
Margin: 2.82 Overstable

Parts Breakdown

1-2PatriotRedlineEllis.rkt Ogive Nose Cone

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 36.00 in]

Public Missiles Rip stop nylon Parachute (48.00 in)

Public Missiles PML LL-38 Launch Lug

Public Missiles PML LL-38 Launch Lug

Custom Mass Object

Public Missiles PML CR-14 Ring

Public Missiles PML CR-14 Ring

SuddenRush_38mmMAC-8.rkt Trapezo Trapezoid Fin Set

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.50 in]

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 14.50 in]

Public Missiles PML CR-02 Ring

Public Missiles PML CR-02 Ring

Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 2.50 in]

Public Missiles PML CBP-06 Ring

Public Missiles PML DR-10 D ring Mass Object
