ARG T222-24 Sounding Rocket - Ro Freeform Fin Set

Manufacturer:
Part Number:T222-24 Sounding Rocket
Style:Freeform Fin Set
Material:Aircraft plywood (LOC)

Download as PDF

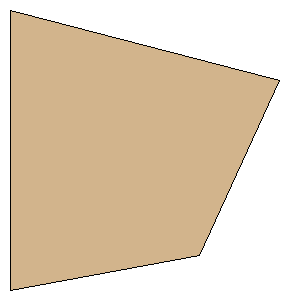

Point 1:(0.0000 mm, 82.5500 mm)
Point 2:(55.8800 mm, 72.3900 mm)
Point 3:(79.3750 mm, 20.6380 mm)
Point 4:(0.0000 mm, 0.0000 mm)
Width:3.2500 inches (82.5500 mm)
Height:3.2500 inches (82.5500 mm)
