Strong Arm Rocsim File Freeform Freeform Fin Set| Manufacturer: | Aerotech | | Part Number: | AT18917 | | Style: | Freeform Fin Set | | Material: | Polystyrene PS |

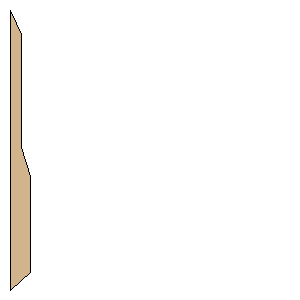

Download as PDF | Point 1: | (0.0000 mm, 304.8000 mm) | | Point 2: | (22.2250 mm, 285.7500 mm) | | Point 3: | (22.2250 mm, 180.9750 mm) | | Point 4: | (12.7000 mm, 149.2250 mm) | | Point 5: | (12.7000 mm, 26.9880 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 12.0000 inches (304.8000 mm) | | Height: | 12.0000 inches (304.8000 mm) |
