Apogee Components Diamondback Rocksim Design File

Contributed by Apogee Components

• Manufacturer: Apogee Components

Designer: John Manfredo

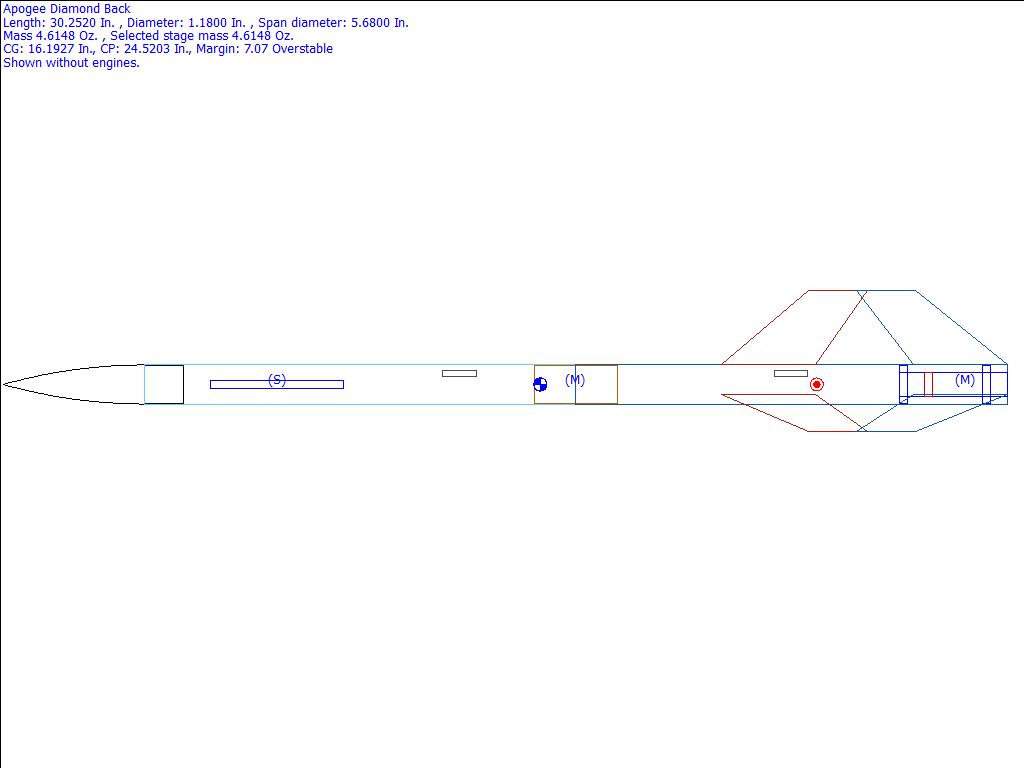

Download apogee_diamondback.rkt

To use the design file above, you need a copy of Rocksim, a rocket design and simulation program.

Kit Name: Apogee Components - Diamond Back {Kit}

•
•
•

Parts Breakdown

• Antares Hawk Ogive Nose Cone
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.00 in]
• Apogee 13008 Ring
• Apogee Components Mylar Streamer (0.0010 in)
• Apogee 13051 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 13.00 in]
• Estes Mass Object
• Apogee 13051 Launch Lug
• Custom Estes BT 1090 1.0173 inches 25.84 mm 0.7250 inches 18.42 mm 0.7250 inches 18.42 mm 0.9500 inches 24.13 mm 0.9500 inches 24.13 mm 0.2400 inches 6.10 mm 0.0000 inches 0.00 mm 1.5950 inches 40.51 mm 2.5550 inches 64.90 mm 1.8000 inches 45.72 mm 1.5200 Body Tube [Length: 3.25 in]
• Apogee 13034 Ring
• Apogee 13034 Ring
• Apogee 13029 Ring
• Apogee 24041 standard size engine hook Mass Object
• apogee_diamondback.rkt Trapezoid Trapezoid Fin Set
• apogee_diamondback.rkt Trapezoid Trapezoid Fin Set

Related Kits:

• Apogee Components - Diamond Back {Kit}
