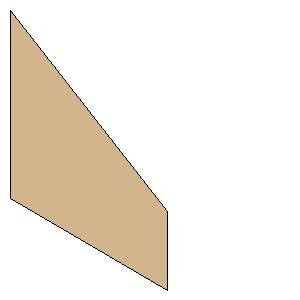

Apogee Components Balsa Trapezoid Fin Set| Manufacturer: | Apogee Components | | Part Number: | 15695 | | Style: | Trapezoid Fin Set | | Material: | Balsa |
Download as PDF | Root Chord: | 1.5000 inches (38.1000 mm) | | Tip Chord: | 0.6250 inches (15.8750 mm) | | Sweep Distance: | 1.5999 inches (40.6375 mm) | | SemiSpan: | 1.2500 inches (31.7500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (31.7500 mm, 40.6375 mm) | | Point 3: | (31.7500 mm, 56.5125 mm) | | Point 4: | (0.0000 mm, 38.1000 mm) | | Width: | 1.2500 inches (31.7500 mm) | | Height: | 2.2249 inches (56.5125 mm) |
