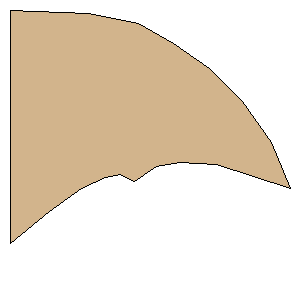

Estes - Hyper Bat Freeform Fin S Freeform Fin Set| Manufacturer: | | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 36.2498 mm) | | Point 2: | (6.0854 mm, 31.2151 mm) | | Point 3: | (11.1125 mm, 27.6432 mm) | | Point 4: | (14.8167 mm, 25.9498 mm) | | Point 5: | (17.1979 mm, 25.5265 mm) | | Point 6: | (19.3146 mm, 26.5849 mm) | | Point 7: | (22.7542 mm, 24.2036 mm) | | Point 8: | (26.1938 mm, 23.6744 mm) | | Point 9: | (32.0146 mm, 23.9390 mm) | | Point 10: | (43.3917 mm, 27.6432 mm) | | Point 11: | (40.4813 mm, 20.4994 mm) | | Point 12: | (35.9833 mm, 14.1494 mm) | | Point 13: | (30.9563 mm, 9.1224 mm) | | Point 14: | (25.4000 mm, 5.1536 mm) | | Point 15: | (19.8438 mm, 2.0486 mm) | | Point 16: | (12.1708 mm, 0.5234 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 1.7083 inches (43.3917 mm) | | Height: | 1.4272 inches (36.2498 mm) |
