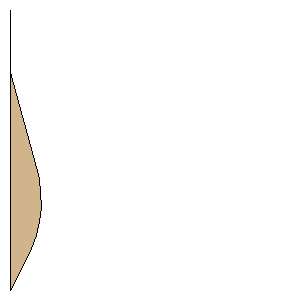

Buck Jones 1957 Retro Freeform F Freeform Fin Set| Manufacturer: | Blitz | | Part Number: | 1956 Lug | | Style: | Freeform Fin Set | | Material: | G10 fiberglass |
Download as PDF | Point 1: | (0.0000 mm, 169.0600 mm) | | Point 2: | (9.4831 mm, 151.9840 mm) | | Point 3: | (13.2453 mm, 144.2000 mm) | | Point 4: | (16.1015 mm, 136.0390 mm) | | Point 5: | (18.0147 mm, 127.6070 mm) | | Point 6: | (18.9605 mm, 119.0130 mm) | | Point 7: | (17.9133 mm, 101.7800 mm) | | Point 8: | (0.1732 mm, 37.9667 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 6.6559 inches (169.0600 mm) | | Height: | 6.6559 inches (169.0600 mm) |
