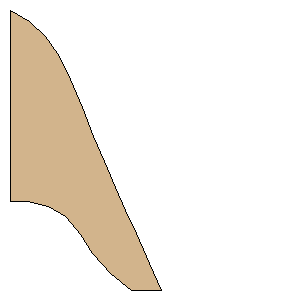

Purple Haze Freeform Fin Set Freeform Fin Set| Manufacturer: | Crayola Fin | | Part Number: | 001 | | Style: | Freeform Fin Set | | Material: | Lexan |
Download as PDF | Point 1: | (0.0000 mm, 200.0260 mm) | | Point 2: | (18.2160 mm, 200.6450 mm) | | Point 3: | (40.2790 mm, 205.4890 mm) | | Point 4: | (58.0380 mm, 216.2520 mm) | | Point 5: | (73.6440 mm, 234.5480 mm) | | Point 6: | (86.5600 mm, 254.4600 mm) | | Point 7: | (104.8560 mm, 274.9090 mm) | | Point 8: | (126.9200 mm, 292.6680 mm) | | Point 9: | (158.1320 mm, 292.6680 mm) | | Point 10: | (145.7550 mm, 264.6840 mm) | | Point 11: | (132.3020 mm, 234.0100 mm) | | Point 12: | (121.0010 mm, 209.7940 mm) | | Point 13: | (110.2380 mm, 185.5770 mm) | | Point 14: | (98.3990 mm, 158.6700 mm) | | Point 15: | (87.0980 mm, 131.7630 mm) | | Point 16: | (75.2590 mm, 101.6270 mm) | | Point 17: | (62.8810 mm, 73.1060 mm) | | Point 18: | (52.1190 mm, 48.8900 mm) | | Point 19: | (37.5890 mm, 27.9020 mm) | | Point 20: | (20.3680 mm, 12.2960 mm) | | Point 21: | (0.0000 mm, 0.0000 mm) | | Width: | 7.8750 inches (200.0260 mm) | | Height: | 11.5224 inches (292.6680 mm) |
