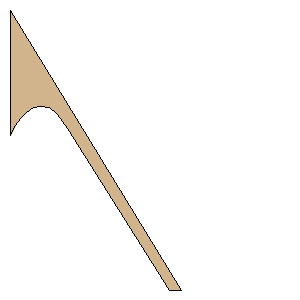

M.A.R.S. 1 or Challenge 142 Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/4 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 114.3000 mm) | | Point 2: | (5.1353 mm, 105.2271 mm) | | Point 3: | (9.2928 mm, 98.6938 mm) | | Point 4: | (14.3412 mm, 93.6454 mm) | | Point 5: | (20.8745 mm, 88.5970 mm) | | Point 6: | (28.0017 mm, 87.1122 mm) | | Point 7: | (36.0197 mm, 88.5970 mm) | | Point 8: | (41.9591 mm, 93.6454 mm) | | Point 9: | (47.6014 mm, 100.7726 mm) | | Point 10: | (51.7589 mm, 107.6028 mm) | | Point 11: | (145.0494 mm, 254.0000 mm) | | Point 12: | (155.4869 mm, 254.0000 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 6.1215 inches (155.4869 mm) | | Height: | 10.0000 inches (254.0000 mm) |
