| Rocketry Parts Database >> Fins >> |

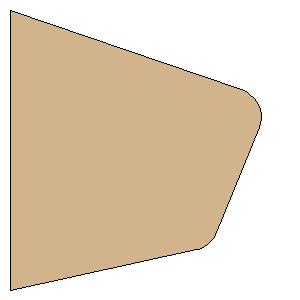

Estes Panavia #9715 Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 122.9360 mm) | | Point 2: | (81.7301 mm, 105.3030 mm) | | Point 3: | (82.9238 mm, 104.9840 mm) | | Point 4: | (84.0808 mm, 104.5510 mm) | | Point 5: | (85.1903 mm, 104.0070 mm) | | Point 6: | (86.2416 mm, 103.3580 mm) | | Point 7: | (87.2249 mm, 102.6090 mm) | | Point 8: | (88.1309 mm, 101.7690 mm) | | Point 9: | (88.9508 mm, 100.8450 mm) | | Point 10: | (89.6771 mm, 99.8451 mm) | | Point 11: | (90.3028 mm, 98.7796 mm) | | Point 12: | (90.8220 mm, 97.6584 mm) | | Point 13: | (109.4410 mm, 51.7108 mm) | | Point 14: | (110.0360 mm, 49.7512 mm) | | Point 15: | (110.3070 mm, 47.7215 mm) | | Point 16: | (110.2490 mm, 45.6746 mm) | | Point 17: | (109.8620 mm, 43.6637 mm) | | Point 18: | (109.1570 mm, 41.7410 mm) | | Point 19: | (108.1530 mm, 39.9565 mm) | | Point 20: | (106.8750 mm, 38.3568 mm) | | Point 21: | (105.3560 mm, 36.9832 mm) | | Point 22: | (103.6360 mm, 35.8715 mm) | | Point 23: | (101.7600 mm, 35.0507 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 4.8400 inches (122.9360 mm) | | Height: | 4.8400 inches (122.9360 mm) |
