Hughes AIM-47A Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

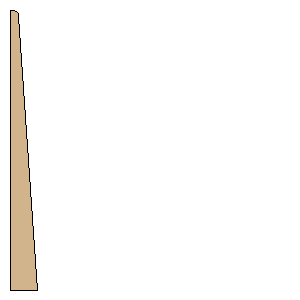

Download as PDF | Point 1: | (0.0000 mm, 255.5310 mm) | | Point 2: | (25.4111 mm, 255.5310 mm) | | Point 3: | (8.1618 mm, 5.5674 mm) | | Point 4: | (7.7222 mm, 3.8379 mm) | | Point 5: | (6.8313 mm, 2.2779 mm) | | Point 6: | (5.5185 mm, 1.0516 mm) | | Point 7: | (3.9015 mm, 0.2689 mm) | | Point 8: | (2.1253 mm, 0.0000 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 10.0603 inches (255.5310 mm) | | Height: | 10.0603 inches (255.5310 mm) |
