Sirius Rocketry Interrogator G F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

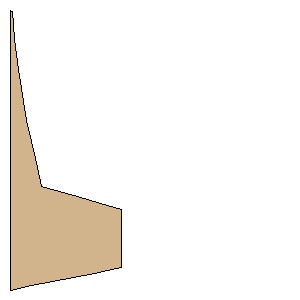

Download as PDF | Point 1: | (0.0000 mm, 419.1000 mm) | | Point 2: | (31.7500 mm, 412.7500 mm) | | Point 3: | (63.5000 mm, 406.4000 mm) | | Point 4: | (95.2500 mm, 400.0500 mm) | | Point 5: | (127.0000 mm, 393.7000 mm) | | Point 6: | (158.7500 mm, 387.3500 mm) | | Point 7: | (166.6880 mm, 385.7630 mm) | | Point 8: | (166.6880 mm, 298.4500 mm) | | Point 9: | (146.0500 mm, 292.1000 mm) | | Point 10: | (101.6000 mm, 279.4000 mm) | | Point 11: | (47.6250 mm, 263.5250 mm) | | Point 12: | (38.1000 mm, 222.2500 mm) | | Point 13: | (25.4000 mm, 165.1000 mm) | | Point 14: | (12.7000 mm, 88.9000 mm) | | Point 15: | (6.3500 mm, 44.4500 mm) | | Point 16: | (3.1750 mm, 1.6586 mm) | | Point 17: | (0.0000 mm, 0.0000 mm) | | Width: | 16.5000 inches (419.1000 mm) | | Height: | 16.5000 inches (419.1000 mm) |
