| Rocketry Parts Database >> Fins >> |

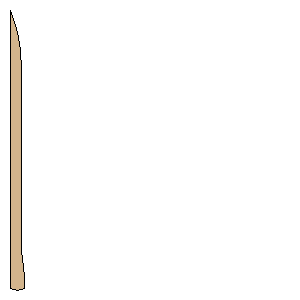

Bell X-1 (1/20) Glamorous Glenni Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 270.3920 mm) | | Point 2: | (6.8907 mm, 271.4770 mm) | | Point 3: | (14.4532 mm, 270.4210 mm) | | Point 4: | (13.9421 mm, 258.6650 mm) | | Point 5: | (12.8558 mm, 249.4650 mm) | | Point 6: | (11.3224 mm, 234.1310 mm) | | Point 7: | (11.2319 mm, 59.8422 mm) | | Point 8: | (10.1466 mm, 38.1360 mm) | | Point 9: | (7.2334 mm, 21.5012 mm) | | Point 10: | (4.7201 mm, 12.0886 mm) | | Point 11: | (0.0000 mm, 0.0000 mm) | | Width: | 10.6454 inches (270.3920 mm) | | Height: | 10.6881 inches (271.4770 mm) |
