M2 - Mars Challenger Freeform Fi Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |

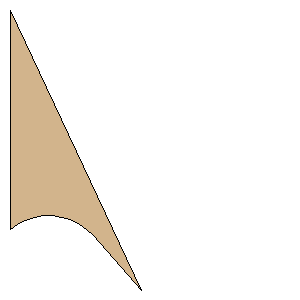

Download as PDF | Point 1: | (0.0000 mm, 139.7000 mm) | | Point 2: | (0.0469 mm, 139.6610 mm) | | Point 3: | (4.7980 mm, 136.2570 mm) | | Point 4: | (10.0138 mm, 133.6200 mm) | | Point 5: | (15.5716 mm, 131.8110 mm) | | Point 6: | (21.3407 mm, 130.8740 mm) | | Point 7: | (27.1851 mm, 130.8300 mm) | | Point 8: | (32.9675 mm, 131.6810 mm) | | Point 9: | (38.5517 mm, 133.4060 mm) | | Point 10: | (43.8064 mm, 135.9650 mm) | | Point 11: | (48.6078 mm, 139.2980 mm) | | Point 12: | (52.8430 mm, 143.3260 mm) | | Point 13: | (83.8721 mm, 178.0370 mm) | | Point 14: | (0.0000 mm, 0.0000 mm) | | Width: | 5.5000 inches (139.7000 mm) | | Height: | 7.0093 inches (178.0370 mm) |
