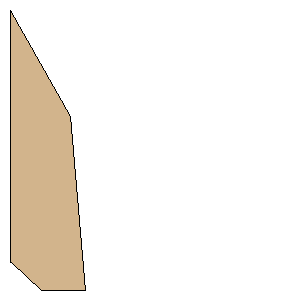

scratch_liddle_v2.rkt Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 166.0704 mm) | | Point 2: | (0.4265 mm, 166.0704 mm) | | Point 3: | (1.0387 mm, 166.0704 mm) | | Point 4: | (20.9492 mm, 183.9500 mm) | | Point 5: | (49.7404 mm, 183.9500 mm) | | Point 6: | (39.9391 mm, 70.0103 mm) | | Point 7: | (0.0000 mm, 0.0000 mm) | | Width: | 6.5382 inches (166.0704 mm) | | Height: | 7.2421 inches (183.9500 mm) |
