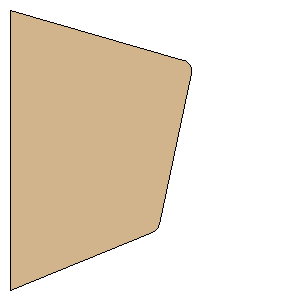

Cherokee-F Rocksim file Freeform Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 158.7500 mm) | | Point 2: | (80.7920 mm, 125.9800 mm) | | Point 3: | (81.3536 mm, 125.7190 mm) | | Point 4: | (81.8872 mm, 125.4060 mm) | | Point 5: | (82.3878 mm, 125.0410 mm) | | Point 6: | (82.8504 mm, 124.6300 mm) | | Point 7: | (83.2708 mm, 124.1760 mm) | | Point 8: | (83.6450 mm, 123.6820 mm) | | Point 9: | (83.9694 mm, 123.1550 mm) | | Point 10: | (84.2409 mm, 122.5990 mm) | | Point 11: | (84.4569 mm, 122.0190 mm) | | Point 12: | (84.6155 mm, 121.4200 mm) | | Point 13: | (102.8370 mm, 36.0091 mm) | | Point 14: | (102.9660 mm, 35.0664 mm) | | Point 15: | (102.9540 mm, 34.1149 mm) | | Point 16: | (102.7990 mm, 33.1760 mm) | | Point 17: | (102.5060 mm, 32.2707 mm) | | Point 18: | (102.0810 mm, 31.4194 mm) | | Point 19: | (101.5330 mm, 30.6412 mm) | | Point 20: | (100.8750 mm, 29.9536 mm) | | Point 21: | (100.1220 mm, 29.3720 mm) | | Point 22: | (99.2907 mm, 28.9094 mm) | | Point 23: | (98.3994 mm, 28.5763 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Width: | 6.2500 inches (158.7500 mm) | | Height: | 6.2500 inches (158.7500 mm) |
