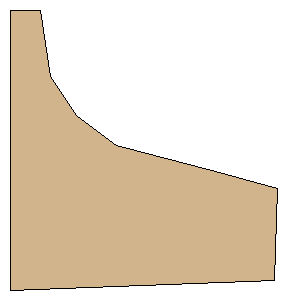

Bell X-1 (1/20) Glamorous Glenni Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Point 1: | (0.0000 mm, 92.4015 mm) | | Point 2: | (87.2035 mm, 89.1455 mm) | | Point 3: | (88.2888 mm, 58.7569 mm) | | Point 4: | (67.6680 mm, 53.3304 mm) | | Point 5: | (35.1087 mm, 44.6479 mm) | | Point 6: | (22.0850 mm, 34.8801 mm) | | Point 7: | (13.4025 mm, 21.8564 mm) | | Point 8: | (10.1466 mm, 0.1502 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 3.6379 inches (92.4015 mm) | | Height: | 3.6379 inches (92.4015 mm) |
