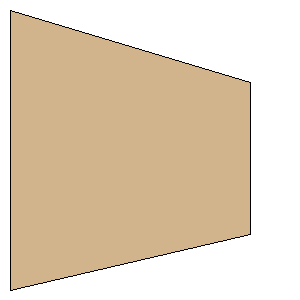

Horizon 38/29 Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | 1/8 Aircraft Plywood |
Download as PDF | Root Chord: | 6.2500 inches (158.7500 mm) | | Tip Chord: | 3.3750 inches (85.7250 mm) | | Sweep Distance: | 1.6250 inches (41.2750 mm) | | SemiSpan: | 5.3750 inches (136.5250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (136.5250 mm, 41.2750 mm) | | Point 3: | (136.5250 mm, 127.0000 mm) | | Point 4: | (0.0000 mm, 158.7500 mm) | | Width: | 5.3750 inches (136.5250 mm) | | Height: | 6.2500 inches (158.7500 mm) |
