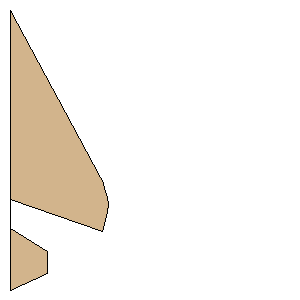

FS1 2.26in (Final).rkt Freeform Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 142.8750 mm) | | Point 2: | (25.4000 mm, 132.0800 mm) | | Point 3: | (25.4000 mm, 116.8400 mm) | | Point 4: | (0.0254 mm, 101.6000 mm) | | Point 5: | (0.0254 mm, 82.5500 mm) | | Point 6: | (61.5950 mm, 103.5050 mm) | | Point 7: | (65.4050 mm, 90.8050 mm) | | Point 8: | (65.7860 mm, 85.7250 mm) | | Point 9: | (65.4050 mm, 81.9150 mm) | | Point 10: | (64.7700 mm, 78.7400 mm) | | Point 11: | (63.5000 mm, 74.9300 mm) | | Point 12: | (62.2300 mm, 71.7550 mm) | | Point 13: | (60.3250 mm, 67.9450 mm) | | Point 14: | (0.0000 mm, -44.4500 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 5.6250 inches (142.8750 mm) | | Height: | 7.3750 inches (187.3250 mm) |
