| Rocketry Parts Database >> Fins >> |

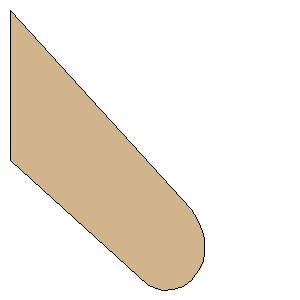

U.S. Rockets Mosquito 2.2 Freefo Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 76.5373 mm) | | Point 2: | (70.4672 mm, 140.0794 mm) | | Point 3: | (77.5417 mm, 142.1576 mm) | | Point 4: | (82.9629 mm, 141.6746 mm) | | Point 5: | (88.0144 mm, 140.3453 mm) | | Point 6: | (92.2683 mm, 137.4208 mm) | | Point 7: | (94.3952 mm, 134.4962 mm) | | Point 8: | (96.3075 mm, 131.6018 mm) | | Point 9: | (98.0668 mm, 127.4968 mm) | | Point 10: | (98.9465 mm, 123.0985 mm) | | Point 11: | (98.6533 mm, 119.2867 mm) | | Point 12: | (98.6533 mm, 116.0613 mm) | | Point 13: | (97.4804 mm, 112.2495 mm) | | Point 14: | (95.7211 mm, 107.2648 mm) | | Point 15: | (92.0024 mm, 101.2629 mm) | | Point 16: | (0.0000 mm, 0.0000 mm) | | Width: | 3.8955 inches (98.9465 mm) | | Height: | 5.5968 inches (142.1576 mm) |
