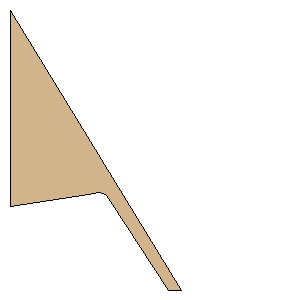

M.A.R.S. 1 or Challenge 142 Free Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Point 1: | (0.0000 mm, 177.8000 mm) | | Point 2: | (71.3408 mm, 167.2527 mm) | | Point 3: | (76.0911 mm, 166.0651 mm) | | Point 4: | (81.4351 mm, 165.7682 mm) | | Point 5: | (86.4823 mm, 166.9558 mm) | | Point 6: | (89.7481 mm, 170.8154 mm) | | Point 7: | (91.5295 mm, 174.0812 mm) | | Point 8: | (143.4295 mm, 253.8844 mm) | | Point 9: | (155.4480 mm, 253.8844 mm) | | Point 10: | (0.0000 mm, 0.0000 mm) | | Width: | 7.0000 inches (177.8000 mm) | | Height: | 9.9954 inches (253.8844 mm) |
