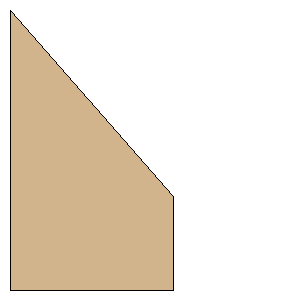

Oblivious Bomber Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 3.0000 inches (76.2000 mm) | | Tip Chord: | 1.0000 inches (25.4000 mm) | | Sweep Distance: | 2.0000 inches (50.8000 mm) | | SemiSpan: | 1.7500 inches (44.4500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (44.4500 mm, 50.8000 mm) | | Point 3: | (44.4500 mm, 76.2000 mm) | | Point 4: | (0.0000 mm, 76.2000 mm) | | Width: | 1.7500 inches (44.4500 mm) | | Height: | 3.0000 inches (76.2000 mm) |
