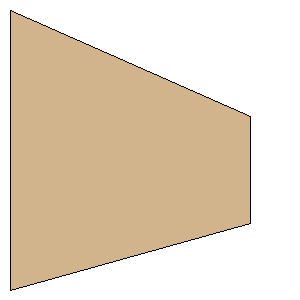

Madcow Rocketry AQM-37 Jayhawk T Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 2.1000 inches (53.3400 mm) | | Tip Chord: | 0.8000 inches (20.3200 mm) | | Sweep Distance: | 0.8000 inches (20.3200 mm) | | SemiSpan: | 1.8000 inches (45.7200 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (45.7200 mm, 20.3200 mm) | | Point 3: | (45.7200 mm, 40.6400 mm) | | Point 4: | (0.0000 mm, 53.3400 mm) | | Width: | 1.8000 inches (45.7200 mm) | | Height: | 2.1000 inches (53.3400 mm) |
