| Rocketry Parts Database >> Fins >> |

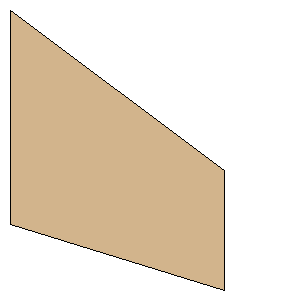

Afterburner DX-3 Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 4.5000 inches (114.3000 mm) | | Tip Chord: | 2.5000 inches (63.5000 mm) | | Sweep Distance: | 3.3760 inches (85.7504 mm) | | SemiSpan: | 4.5000 inches (114.3000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (114.3000 mm, 85.7504 mm) | | Point 3: | (114.3000 mm, 149.2504 mm) | | Point 4: | (0.0000 mm, 114.3000 mm) | | Width: | 4.5000 inches (114.3000 mm) | | Height: | 5.8760 inches (149.2504 mm) |
