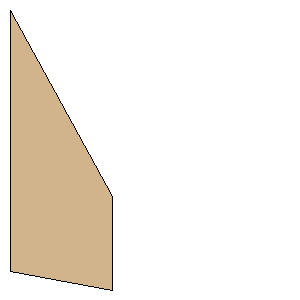

Madcow Rocketry Discovery Trapez Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 7.0000 inches (177.8000 mm) | | Tip Chord: | 2.5000 inches (63.5000 mm) | | Sweep Distance: | 5.0000 inches (127.0000 mm) | | SemiSpan: | 2.7500 inches (69.8500 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (69.8500 mm, 127.0000 mm) | | Point 3: | (69.8500 mm, 190.5000 mm) | | Point 4: | (0.0000 mm, 177.8000 mm) | | Width: | 2.7500 inches (69.8500 mm) | | Height: | 7.5000 inches (190.5000 mm) |
