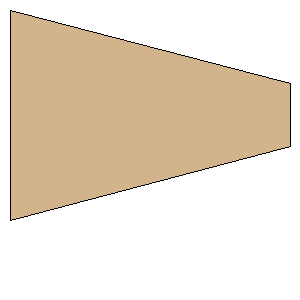

MR 2B Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 1.8750 inches (47.6250 mm) | | Tip Chord: | 0.5625 inches (14.2875 mm) | | Sweep Distance: | 0.6562 inches (16.6675 mm) | | SemiSpan: | 2.5000 inches (63.5000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (63.5000 mm, 16.6675 mm) | | Point 3: | (63.5000 mm, 30.9550 mm) | | Point 4: | (0.0000 mm, 47.6250 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 1.8750 inches (47.6250 mm) |
