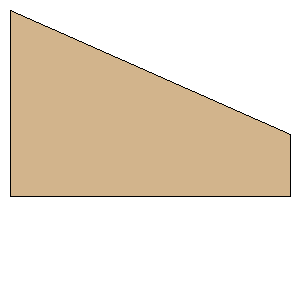

Big Bad Bumble Bee Trapezoid Fin Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 0.7500 inches (19.0500 mm) | | Tip Chord: | 0.2500 inches (6.3500 mm) | | Sweep Distance: | 0.5000 inches (12.7000 mm) | | SemiSpan: | 1.1250 inches (28.5750 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (28.5750 mm, 12.7000 mm) | | Point 3: | (28.5750 mm, 19.0500 mm) | | Point 4: | (0.0000 mm, 19.0500 mm) | | Width: | 1.1250 inches (28.5750 mm) | | Height: | 0.7500 inches (19.0500 mm) |
