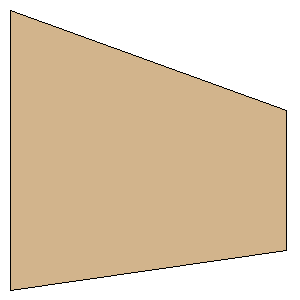

scratch_4_38.rkt Trapezoid Fin S Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 9.0000 inches (228.6000 mm) | | Tip Chord: | 4.5000 inches (114.3000 mm) | | Sweep Distance: | 3.2302 inches (82.0471 mm) | | SemiSpan: | 8.8750 inches (225.4250 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (225.4250 mm, 82.0471 mm) | | Point 3: | (225.4250 mm, 196.3471 mm) | | Point 4: | (0.0000 mm, 228.6000 mm) | | Width: | 8.8750 inches (225.4250 mm) | | Height: | 9.0000 inches (228.6000 mm) |
