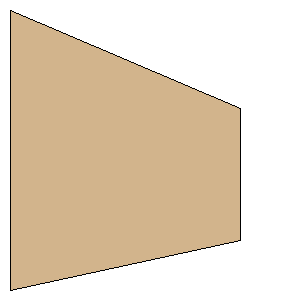

Horizon 3" Trapezoid Fin Set Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 4.2500 inches (107.9500 mm) | | Tip Chord: | 2.0000 inches (50.8000 mm) | | Sweep Distance: | 1.5000 inches (38.1000 mm) | | SemiSpan: | 3.5000 inches (88.9000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (88.9000 mm, 38.1000 mm) | | Point 3: | (88.9000 mm, 88.9000 mm) | | Point 4: | (0.0000 mm, 107.9500 mm) | | Width: | 3.5000 inches (88.9000 mm) | | Height: | 4.2500 inches (107.9500 mm) |
