U.S. Rockets Sonic 2200 Trapezoi Trapezoid Fin Set

Manufacturer:Custom
Part Number:
Style:Trapezoid Fin Set
Material:Aircraft plywood (Birch)

Download as PDF

Root Chord:4.0000 inches (101.6000 mm)
Tip Chord:1.5000 inches (38.1000 mm)
Sweep Distance:1.4990 inches (38.0746 mm)
SemiSpan:5.0000 inches (127.0000 mm)

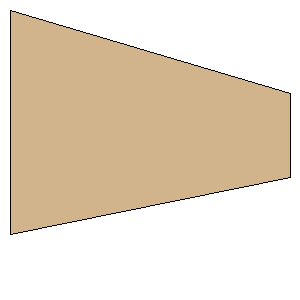

Point 1:(0.0000 mm, 0.0000 mm)
Point 2:(127.0000 mm, 38.0746 mm)
Point 3:(127.0000 mm, 76.1746 mm)
Point 4:(0.0000 mm, 101.6000 mm)
Width:5.0000 inches (127.0000 mm)
Height:4.0000 inches (101.6000 mm)
