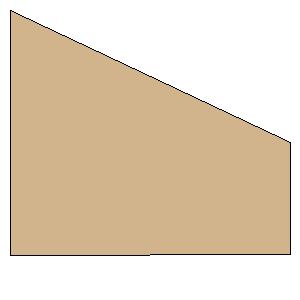

U.S. Rockets Starfire Trapezoid Trapezoid Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Trapezoid Fin Set | | Material: | Aircraft plywood (Birch) |
Download as PDF | Root Chord: | 8.7500 inches (222.2500 mm) | | Tip Chord: | 4.0000 inches (101.6000 mm) | | Sweep Distance: | 4.7430 inches (120.4722 mm) | | SemiSpan: | 10.0000 inches (254.0000 mm) | | Point 1: | (0.0000 mm, 0.0000 mm) | | Point 2: | (254.0000 mm, 120.4722 mm) | | Point 3: | (254.0000 mm, 222.0722 mm) | | Point 4: | (0.0000 mm, 222.2500 mm) | | Width: | 10.0000 inches (254.0000 mm) | | Height: | 8.7500 inches (222.2500 mm) |
