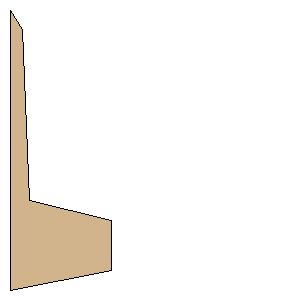

Interceptor R.A.T. Freeform Fin Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Aircraft plywood (LOC) |
Download as PDF | Point 1: | (0.0000 mm, 279.4000 mm) | | Point 2: | (101.6000 mm, 260.3500 mm) | | Point 3: | (101.6000 mm, 209.5500 mm) | | Point 4: | (19.0500 mm, 190.5000 mm) | | Point 5: | (12.7000 mm, 19.0500 mm) | | Point 6: | (0.0000 mm, 0.0000 mm) | | Width: | 11.0000 inches (279.4000 mm) | | Height: | 11.0000 inches (279.4000 mm) |
