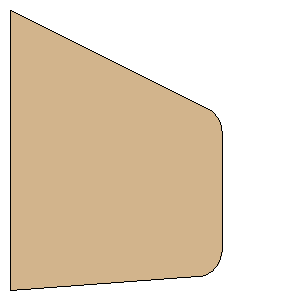

Custom Balsa Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 67.0560 mm) | | Point 2: | (44.8934 mm, 63.9135 mm) | | Point 3: | (45.8356 mm, 63.7759 mm) | | Point 4: | (46.7467 mm, 63.4991 mm) | | Point 5: | (47.6061 mm, 63.0891 mm) | | Point 6: | (48.3945 mm, 62.5552 mm) | | Point 7: | (49.0943 mm, 61.9095 mm) | | Point 8: | (49.6896 mm, 61.1663 mm) | | Point 9: | (50.1671 mm, 60.3426 mm) | | Point 10: | (50.5160 mm, 59.4566 mm) | | Point 11: | (50.8000 mm, 57.5790 mm) | | Point 12: | (50.8000 mm, 29.3245 mm) | | Point 13: | (50.7611 mm, 28.6229 mm) | | Point 14: | (50.6450 mm, 27.9299 mm) | | Point 15: | (50.4529 mm, 27.2540 mm) | | Point 16: | (50.1874 mm, 26.6034 mm) | | Point 17: | (49.8516 mm, 25.9861 mm) | | Point 18: | (49.4497 mm, 25.4097 mm) | | Point 19: | (48.9866 mm, 24.8813 mm) | | Point 20: | (48.4679 mm, 24.4073 mm) | | Point 21: | (47.2898 mm, 23.6449 mm) | | Point 22: | (0.0000 mm, 0.0000 mm) | | Point 23: | (0.0000 mm, 0.0000 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Point 25: | (0.0000 mm, 0.0000 mm) | | Width: | 2.6400 inches (67.0560 mm) | | Height: | 2.6400 inches (67.0560 mm) |
