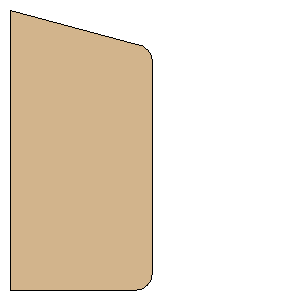

Custom Balsa Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 109.5380 mm) | | Point 2: | (49.2125 mm, 109.5380 mm) | | Point 3: | (50.2059 mm, 109.4590 mm) | | Point 4: | (51.1748 mm, 109.2270 mm) | | Point 5: | (52.0953 mm, 108.8450 mm) | | Point 6: | (52.9449 mm, 108.3250 mm) | | Point 7: | (53.7026 mm, 107.6780 mm) | | Point 8: | (54.3498 mm, 106.9200 mm) | | Point 9: | (54.8704 mm, 106.0700 mm) | | Point 10: | (55.2517 mm, 105.1500 mm) | | Point 11: | (55.4843 mm, 104.1810 mm) | | Point 12: | (55.5625 mm, 103.1880 mm) | | Point 13: | (55.5625 mm, 19.9374 mm) | | Point 14: | (55.5084 mm, 19.1106 mm) | | Point 15: | (55.3472 mm, 18.2979 mm) | | Point 16: | (55.0815 mm, 17.5131 mm) | | Point 17: | (54.7159 mm, 16.7696 mm) | | Point 18: | (54.2566 mm, 16.0800 mm) | | Point 19: | (53.7114 mm, 15.4561 mm) | | Point 20: | (53.0896 mm, 14.9084 mm) | | Point 21: | (52.4018 mm, 14.4464 mm) | | Point 22: | (51.6597 mm, 14.0779 mm) | | Point 23: | (50.8759 mm, 13.8092 mm) | | Point 24: | (0.0000 mm, 0.0000 mm) | | Point 25: | (0.0000 mm, 0.0000 mm) | | Point 26: | (0.0000 mm, 0.0000 mm) | | Point 27: | (0.0000 mm, 0.0000 mm) | | Width: | 4.3125 inches (109.5380 mm) | | Height: | 4.3125 inches (109.5380 mm) |
