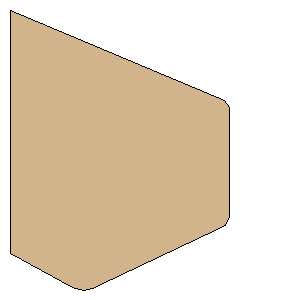

Estes Space Freighter Freeform F Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 63.5000 mm) | | Point 2: | (16.3406 mm, 72.4700 mm) | | Point 3: | (19.0500 mm, 73.0250 mm) | | Point 4: | (21.6145 mm, 72.6584 mm) | | Point 5: | (56.0832 mm, 56.2716 mm) | | Point 6: | (57.1500 mm, 53.9750 mm) | | Point 7: | (57.1500 mm, 25.4000 mm) | | Point 8: | (55.8949 mm, 23.4980 mm) | | Point 9: | (0.0000 mm, 0.0000 mm) | | Width: | 2.5000 inches (63.5000 mm) | | Height: | 2.8750 inches (73.0250 mm) |
