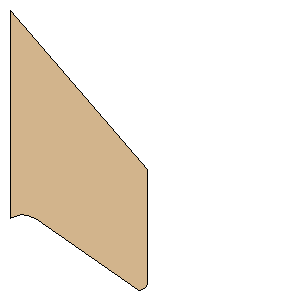

New Centurion Freeform Fin Set Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 89.6620 mm) | | Point 2: | (1.2700 mm, 88.9000 mm) | | Point 3: | (2.5400 mm, 88.3920 mm) | | Point 4: | (5.0800 mm, 87.8840 mm) | | Point 5: | (7.3660 mm, 88.1380 mm) | | Point 6: | (10.9220 mm, 89.6620 mm) | | Point 7: | (54.6100 mm, 119.8880 mm) | | Point 8: | (55.6260 mm, 120.1420 mm) | | Point 9: | (56.8960 mm, 119.8880 mm) | | Point 10: | (58.1660 mm, 119.1260 mm) | | Point 11: | (59.1820 mm, 117.8560 mm) | | Point 12: | (59.1820 mm, 68.5800 mm) | | Point 13: | (0.0000 mm, 0.0000 mm) | | Width: | 3.5300 inches (89.6620 mm) | | Height: | 4.7300 inches (120.1420 mm) |
