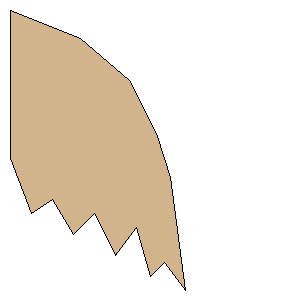

Mr, Eagen (sounds like Mr. EGGen Freeform Fin Set| Manufacturer: | Custom | | Part Number: | | | Style: | Freeform Fin Set | | Material: | Balsa |
Download as PDF | Point 1: | (0.0000 mm, 67.3100 mm) | | Point 2: | (9.5250 mm, 92.0750 mm) | | Point 3: | (19.0500 mm, 85.7250 mm) | | Point 4: | (28.5750 mm, 101.6000 mm) | | Point 5: | (38.1000 mm, 92.0750 mm) | | Point 6: | (47.6250 mm, 111.1250 mm) | | Point 7: | (57.1500 mm, 98.4250 mm) | | Point 8: | (63.5000 mm, 120.6500 mm) | | Point 9: | (69.8500 mm, 114.3000 mm) | | Point 10: | (79.3750 mm, 127.0000 mm) | | Point 11: | (73.0250 mm, 76.2000 mm) | | Point 12: | (66.6750 mm, 57.1500 mm) | | Point 13: | (53.9750 mm, 31.7500 mm) | | Point 14: | (31.7500 mm, 12.7000 mm) | | Point 15: | (0.0000 mm, 0.0000 mm) | | Width: | 3.1250 inches (79.3750 mm) | | Height: | 5.0000 inches (127.0000 mm) |
