Rocketry Parts Database >> Fins >>

Raptor Freeform Fin Set Freeform Fin Set

Manufacturer:Custom
Part Number:
Style:Freeform Fin Set
Material:Balsa

Download as PDF

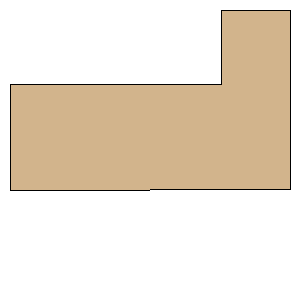

Point 1:(0.0000 mm, 25.4000 mm)
Point 2:(66.7175 mm, 25.0510 mm)
Point 3:(66.7175 mm, -17.6389 mm)
Point 4:(50.4090 mm, -17.6389 mm)
Point 5:(50.3099 mm, 0.1848 mm)
Point 6:(0.0000 mm, 0.0000 mm)
Width:2.6267 inches (66.7175 mm)
Height:1.6944 inches (43.0389 mm)
